Hardrace Front Sway Bar 25.4mm for Suzuki Swift 3rd ZCx2 2011-2017
Hardrace's 25.4mm front sway bar sharpens the handling of the Suzuki Swift 3rd ZCx2 2011-2017 by cutting body roll and giving more control over the car's balance.
It bolts into the standard mounts and offers multiple settings for fine-tuning, making it an easy upgrade for fast road and track use.
Key Features
- 25.4mm bar for reduced body roll
- Hollow construction for stiffness without excess weight
- Heat treated for strength
- Front bar that reduces front roll for crisper turn-in
- Direct replacement using factory mounting points
- No cutting or drilling required
- Suitable for road and track use
- Adjustable for tuning roll stiffness
- Complete 3-piece set
What's in the Kit?

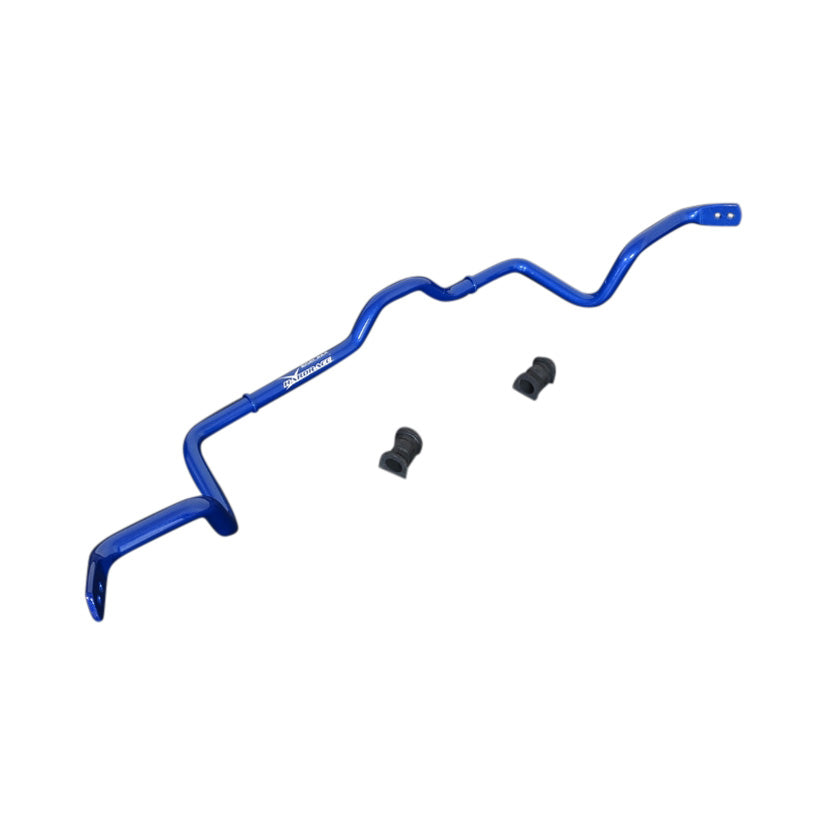

- 1 x 25.4mm front anti-roll bar
- Mounting bushes and fittings (3 pieces in total)
Fitment
- Suzuki Swift 3rd ZCx2 2011-2017
Not suitable for: models other than those listed. FOR 1.6 L ZC32S.
Installation
Support the car safely on a ramp or axle stands. Undo the drop links and bush brackets and remove the original bar. Fit the Hardrace bar with its bushes, refit the brackets and links, and tighten to the vehicle manufacturer's torque figures with the suspension loaded at normal ride height. No wheel alignment is needed for the bar alone. We recommend professional fitting.
Upgrade Further
- Hardrace Reinforced TPV Front Drop Links 2Pc Set Mazda Protege 01-03
- Hardrace 17mm Rear Add On Anti Roll Bar 3Pc Set ZC32S
Which setting should I start on?
Start on the softest hole with both sides set the same, then go firmer if you want less roll.
Do I need an alignment after fitting?
No. An anti-roll bar does not change camber, toe or castor. An alignment is only needed if you change ride height at the same time.
Can I reuse my standard drop links?
Yes. On lowered cars, adjustable drop links let you set the bar level at rest so it is not pre-loaded.
Will it make the ride harsher?
A stiffer bar is felt mainly in corners and over single-wheel bumps. Ride over even bumps is largely unchanged.
Should I fit the rear bar too?
Upgrading both ends cuts roll at both axles while keeping the balance closer to standard. Fitting one end only shifts the balance.
Will it fit my car?
It is listed for the models in the Fitment section. FOR 1.6 L ZC32S.
Is it road legal?
Yes, it is a bolt-on suspension part for road and track use. Tell your insurer about any modifications.
The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
| Rubber bushes | 5 years |
| Spherical bushes | 2 years |
| Adjustable arms with rubber inserts | 5 years |
| Adjustable arms with spherical inserts | 2 years |
| Engine mounts | 5 years |
| Sway bars | Lifetime warranty |
| Bushes and endlinks | 5 years |
| Billet inserts | Lifetime warranty |
| Chassis brace | Lifetime warranty |
| Ball joints/tie rods | 2 years |
