Technical Info
Description

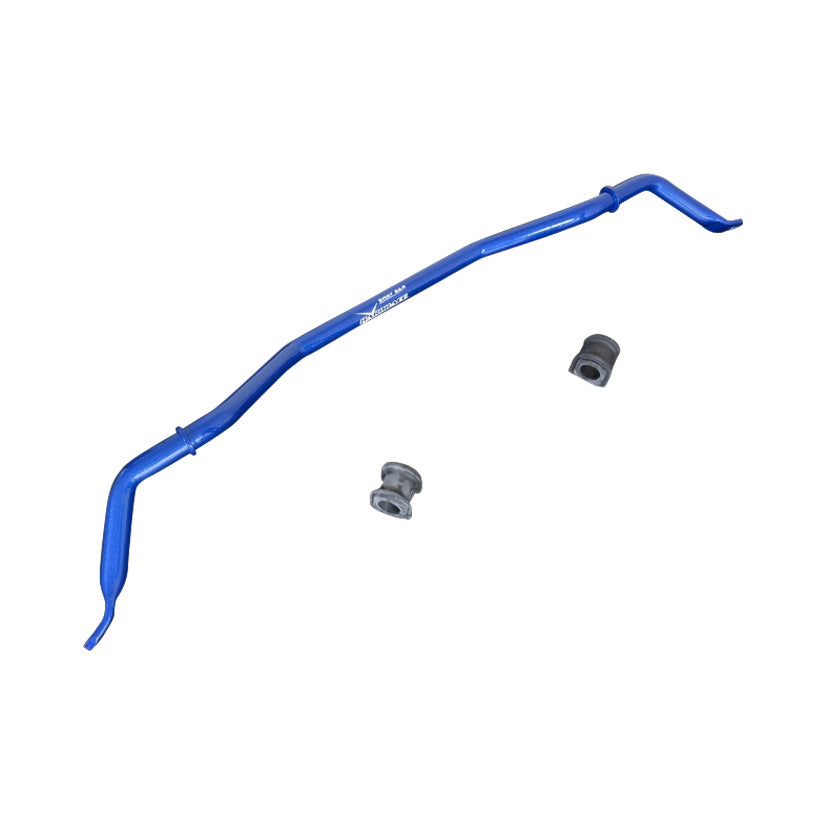

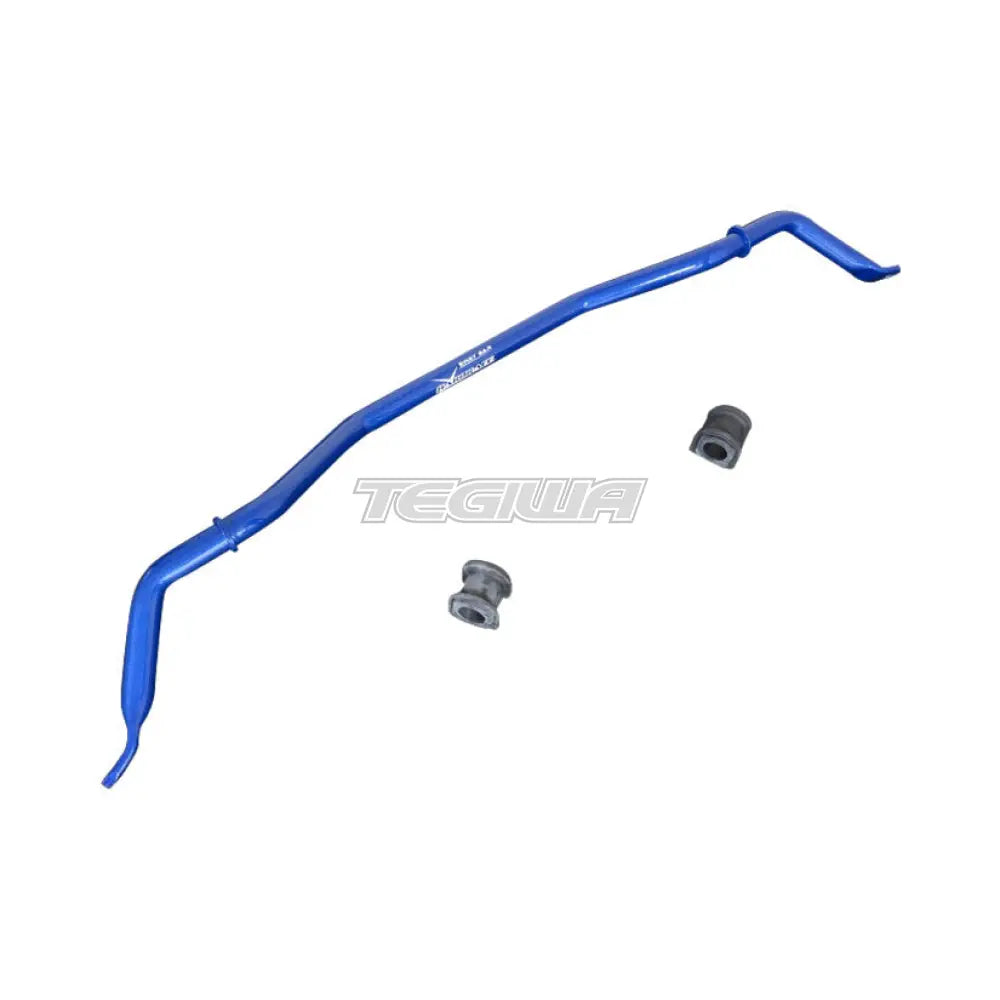

Hardrace Front Sway Bar 30mm for Lexus IS 2nd XE20 2006-2013 and Lexus GS 3rd GRS19 2006-2011 and more
Hardrace's 30mm front sway bar sharpens the handling of the Lexus IS 2nd XE20 2006-2013 and Lexus GS 3rd GRS19 2006-2011 and more by cutting body roll and giving more control over the car's balance.
It bolts into the standard mounts, making it an easy upgrade for fast road and track use.
Key Features
- 30mm bar for reduced body roll
- Front bar that reduces front roll for crisper turn-in
- Direct replacement using factory mounting points
- No cutting or drilling required
- Suitable for road and track use
- Complete 3-piece set
What's in the Kit?
- 1 x 30mm front anti-roll bar
- Mounting bushes and fittings (3 pieces in total)
Fitment
- Lexus IS 2nd XE20 2006-2013
- Lexus GS 3rd GRS19 2006-2011
- Toyota Crown majesta URS 20#/18# 04-09
- Toyota Crown GRS 18# / 20# / GWS204 2003-2012
- Toyota Crown AWS 21# 2012-2018
Not suitable for: models other than those listed. For RWD Use Only.
Installation
Support the car safely on a ramp or axle stands. Undo the drop links and bush brackets and remove the original bar. Fit the Hardrace bar with its bushes, refit the brackets and links, and tighten to the vehicle manufacturer's torque figures with the suspension loaded at normal ride height. No wheel alignment is needed for the bar alone. We recommend professional fitting.
Upgrade Further
- Hardrace Reinforced Front Drop Links 2Pc Set Lexus IS250 06-08
- Hardrace Front Stabilizer Link Lexus GS GSR19 RWD 06-11 IS XE20 RWD 08-13
- Hardrace Adjustable Front Stabilizer Links 2Pc Set Lexus IS 05-12
Do I need an alignment after fitting?
No. An anti-roll bar does not change camber, toe or castor. An alignment is only needed if you change ride height at the same time.
Can I reuse my standard drop links?
Yes. On lowered cars, adjustable drop links let you set the bar level at rest so it is not pre-loaded.
Will it make the ride harsher?
A stiffer bar is felt mainly in corners and over single-wheel bumps. Ride over even bumps is largely unchanged.
Should I fit the rear bar too?
Upgrading both ends cuts roll at both axles while keeping the balance closer to standard. Fitting one end only shifts the balance.
Will it fit my car?
It is listed for the models in the Fitment section. For RWD Use Only.
Is it road legal?
Yes, it is a bolt-on suspension part for road and track use. Tell your insurer about any modifications.
The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
| Rubber bushes | 5 years |
| Spherical bushes | 2 years |
| Adjustable arms with rubber inserts | 5 years |
| Adjustable arms with spherical inserts | 2 years |
| Engine mounts | 5 years |
| Sway bars | Lifetime warranty |
| Bushes and endlinks | 5 years |
| Billet inserts | Lifetime warranty |
| Chassis brace | Lifetime warranty |
| Ball joints/tie rods | 2 years |
