Technical Info
Description

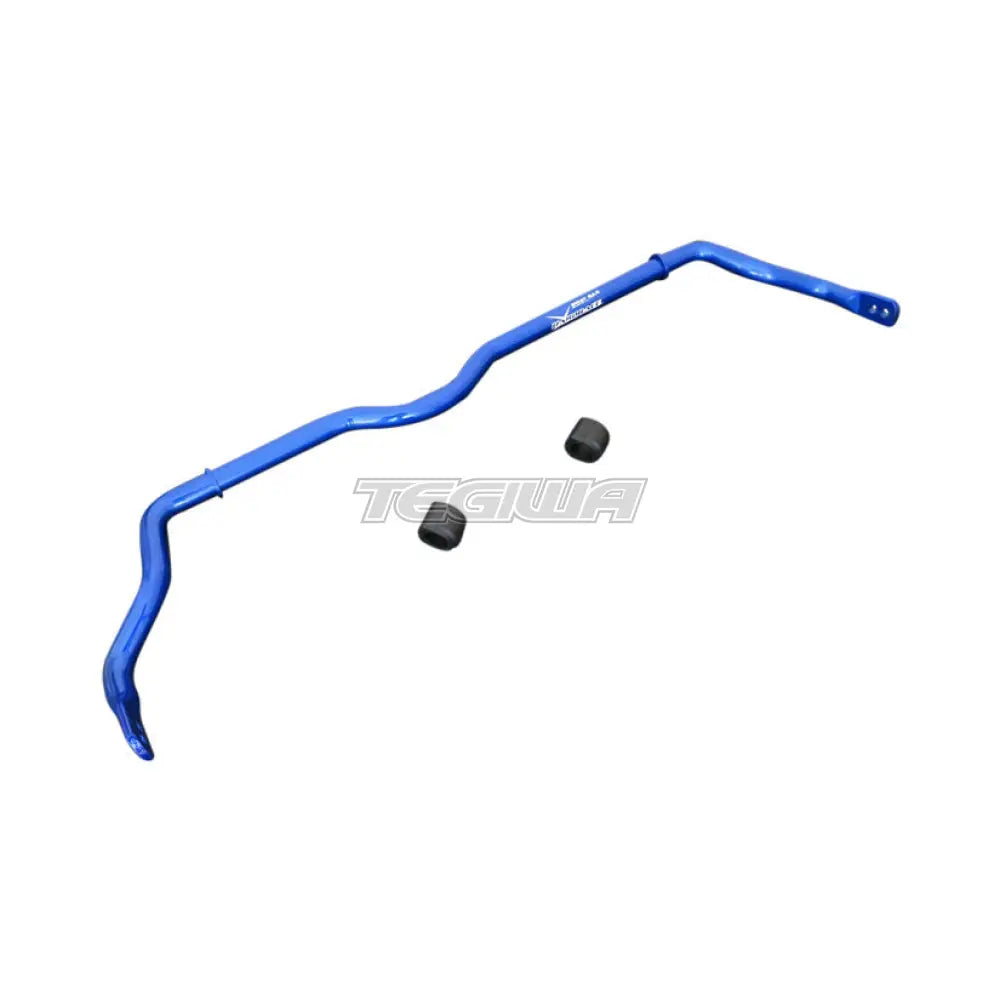

Hardrace Front Sway Bar 30mm for Mercedes-benz A-class W176 2012–2018 and Mercedes-benz B-class W246 2011–2018 and more
Hardrace's 30mm front sway bar sharpens the handling of the Mercedes-benz A-class W176 2012–2018 and Mercedes-benz B-class W246 2011–2018 and more by cutting body roll and giving more control over the car's balance.
It bolts into the standard mounts and offers multiple settings for fine-tuning, making it an easy upgrade for fast road and track use.
Key Features
- 30mm bar for reduced body roll
- Hollow construction for stiffness without excess weight
- Heat treated for strength
- Front bar that reduces front roll for crisper turn-in
- Direct replacement using factory mounting points
- No cutting or drilling required
- Suitable for road and track use
- Adjustable for tuning roll stiffness
- Complete 3-piece set
What's in the Kit?
- 1 x 30mm front anti-roll bar
- Mounting bushes and fittings (3 pieces in total)
Fitment
- Mercedes-benz A-class W176 2012–2018
- Mercedes-benz B-class W246 2011–2018
- Mercedes-benz Cla-class C117 2014-2019
- Mercedes-benz Gla-class X156 2014-2019
- Infiniti Q30 / QX30 2016-2019
Not suitable for: models other than those listed. FOR 2WD USE.
Installation
Support the car safely on a ramp or axle stands. Undo the drop links and bush brackets and remove the original bar. Fit the Hardrace bar with its bushes, refit the brackets and links, and tighten to the vehicle manufacturer's torque figures with the suspension loaded at normal ride height. No wheel alignment is needed for the bar alone. We recommend professional fitting.
Upgrade Further
- Hardrace Adjustable 25.4mm Rear Anti Roll Bar 5Pc Set Mercedes Benz A Class B-Class CLA W1
- Hardrace 25.4mm Rear Anti Roll Bar 5Pc Set Mercedes Benz A45 4WD 16+
Which setting should I start on?
Start on the softest hole with both sides set the same, then go firmer if you want less roll.
Do I need an alignment after fitting?
No. An anti-roll bar does not change camber, toe or castor. An alignment is only needed if you change ride height at the same time.
Can I reuse my standard drop links?
Yes. On lowered cars, adjustable drop links let you set the bar level at rest so it is not pre-loaded.
Will it make the ride harsher?
A stiffer bar is felt mainly in corners and over single-wheel bumps. Ride over even bumps is largely unchanged.
Should I fit the rear bar too?
Upgrading both ends cuts roll at both axles while keeping the balance closer to standard. Fitting one end only shifts the balance.
Will it fit my car?
It is listed for the models in the Fitment section. FOR 2WD USE.
Is it road legal?
Yes, it is a bolt-on suspension part for road and track use. Tell your insurer about any modifications.
The warranty on Hardrace products depends on the type of product, with a minimum warranty period of 2 years. This warranty does not cover damage caused by a car crash, improper use, negligence or normal wear and tear.
| Rubber bushes | 5 years |
| Spherical bushes | 2 years |
| Adjustable arms with rubber inserts | 5 years |
| Adjustable arms with spherical inserts | 2 years |
| Engine mounts | 5 years |
| Sway bars | Lifetime warranty |
| Bushes and endlinks | 5 years |
| Billet inserts | Lifetime warranty |
| Chassis brace | Lifetime warranty |
| Ball joints/tie rods | 2 years |
